Details

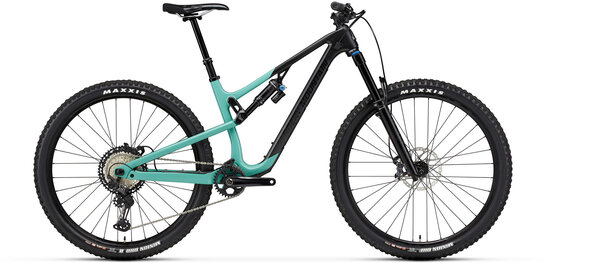

The Instinct has been designed for epic rides and wide-open singletrack. As our most versatile platform, the Instinct thrives on all types of trails, tackling features with the utmost efficiency and responsiveness.
The Instinct has been the go-to bike for riders looking for a bike that does it all, and our most recent design takes that philosophy to the next level. The desire to ride faster and harder than ever is universal amongst riders, and the changes we've made to our Instinct take that to heart while maintaining peak efficiency. Updated geometry and frame features mean that the Instinct is versatile and can adapt to meet any demands that you or the trail may have.
Wheel size:
Sizes X-Small – Small: 27.5-inch*
Sizes Medium – X-Large: 29-inch
* Images with curved top tube show 27.5-inch version
Specs
Frame | SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB92. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry. 2 Position Axle. 140mm Travel. SMOOTHWALL Carbon Rear Triangle |
---|---|
Fork | Fox 36 Float EVOL FIT4 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
Rear Shock | Fox Float DPX2 Performance Elite |
Rims | Race Face AR 30 | Tubeless Ready: Tape & Valves Incl | 32H |
Hubs |
Front: Rocky Mountain Sealed Boost 15mm Rear: DT Swiss 370 Boost 148mm |
Spokes | DT Swiss Competition 2.0/1.8/2.0 |
Axles |
Front: 110 x 15mm Rear: 148 x 12mm |
Tires |
Front: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
Bottom Bracket | Shimano SM-BB71 |
Crankset | Shimano XT | 27.5 = 34T | 29 = 32T | 24mm Spindle | 170mm Crank Length |
Shifters | Shimano XT |
Rear Derailleur | Shimano XT |
Cassette/Freewheel | Shimano XT 10-51T 12spd |
Chain | Shimano M8100 |
Brakes | Shimano XT Trail 4 Piston | Metallic Pads | RT66 180mm F Rotor | RT66 180mm R Rotor |
Handlebars | Race Face Turbine R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp |
Tape/Grips | Ergon GE1 EVO Lock On |
Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
Headset | FSA Orbit NO.57E | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Seatpost | Race Face Turbine R (by Fox) Dropper 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 175mm |
Saddle | WTB Volt Race | Cromoly Rails | 142mm Width |
Pedals | Sold separately |
* Subject to change without notice.
Videos
A Tall Tale – Perception is reality aboard the all-new Instinct
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Green/Carbon / X-Small / 27.5-inch | 770416302479 | B0111XS71 | |
Green/Carbon / Small / 27.5-inch | 770416302516 | B0111SM71 | |
Green/Carbon / Small / 29-inch | 770416302790 | B0111SM91 | |
Green/Carbon / Medium / 29-inch | 770416302837 | B0111MD91 | |
Green/Carbon / Large / 29-inch | 770416302875 | B0111LG91 | |
Green/Carbon / X-Large / 29-inch | 770416302912 | B0111XL91 | |
Purple/Beige / X-Small / 27.5-inch | 770416302554 | B0111XS72 | |
Purple/Beige / Small / 27.5-inch | 770416302592 | B0111SM72 | 210000029337 |
Purple/Beige / Small / 29-inch | 770416302950 | B0111SM92 | |
Purple/Beige / Medium / 29-inch | 770416302998 | B0111MD92 | 210000029338 |
Purple/Beige / Large / 29-inch | 770416303032 | B0111LG92 | 210000029584 |
Purple/Beige / X-Large / 29-inch | 770416303070 | B0111XL92 |
